CNC Press Brake 3-4 Axis 0530

NC Press Brake 2-3 Axis

The most economic bending solution

  • Model: WC67K

  • Controller: E21(E200, SNC51、SNC53、CT8)

  • Capacities: 40T/2200-800/6000

    The welded structure of the whole machine steel plate. Vibration aging is adopted to eliminate internal stress, and the machine has high precision and good rigidity.
    The upper transmission of hydraulic double cylinders, mechanical stop, torsion shaft synchronization, stable and reliable operation, high precision.
    The backgauge distance and slider stroke adopt electric adjustment and manual fine adjustment, and are equipped with a digital display device, which is convenient and quick to use.
    The upper die is equipped with deflection compensation.

Request A Quote

Technical Specifications for 2-3 Axis NC Press Brake

For more detailed parameters, please don’t hesitate to contact us.

Type Nominal(kn) Worktable length(mm) Poles Distance(mm) Throat Depth(mm) Storke(mm) Max open(mm) Power(KW) Dimension(mm)
40T/2200 400 2200 1850 230 100 320 5.5 2200*1200*1910
40T/2500 400 2500 1850 230 100 320 5.5 2500*1200*1910
63T/2500 630 2500 2000 250 120 320 5.5 2500*1300*2210
63T/3200 630 3200 2600 250 120 320 5.5 3200*1300*2210
80T/2500 800 2500 2000 300 120 320 7.5 2500*1400*2300
80T/3200 800 3200 2600 320 120 350 7.5 3200*1500*2300
80T/4000 800 4000 3100 320 120 350 7.5 4000*1500*2400
100T/2500 1000 2500 2000 320 120/150 370/400 7.5 2500*1600*2400
100T/3200 1000 3200 2600 320 120/150 370/400 7.5 3200*1600*2600
100T/4000 1000 4000 3100 320 120/150 370/400 7.5 4000*1600*2700
125T/3200 1250 3200 2600 320 120/150 370/400 7.5 3200*1600*2600
125T/4000 1250 4000 3100 320 120/150 370/400 7.5 4000*1600*2700
160T/3200 1600 3200 2600 320 200 370/400 7.5 3200*1700*2700
160T/4000 1600 4000 3100 320 200 460 11 4000*1700*2800
160T/5000 1600 5000 4000 320 200 460 11 5000*1900*3100
160T/6000 1600 6000 5000 320 200 460 11 6300*1900*3200
200T/3200 2000 3200 2600 320 200 460 11 3200*1950*2800
200T/4000 2000 4000 3100 320 200 460 11 4000*1950*2800
200T/5000 2000 5000 4000 320 200 460 11 5000*1950*3000
200T/6000 2000 6000 5000 320 200 460 11 6000*1950*3300
250T/3200 2500 3200 2600 400 250 590 18.5 3200*2000*3200
250T/4000 2500 4000 3100 400 250 590 18.5 4000*2000*3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000*2000*3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000*2000*3400
300T/3200 3000 3200 2600 400 250 590 22 3200*2000*3450
300T/4000 3000 4000 3100 400 250 590 22 4000*2000*3450
300T/5000 3000 5000 4000 400 250 590 22 5000*2000*3450
300T/6000 3000 6000 5000 400 250 590 22 6000*2000*3450
400T/4000 4000 4000 3100 400 250 590 30 4000*2180*3400
400T/5000 4000 5000 4000 400 250 590 30 5000*2180*3500
400T/6000 4000 6000 5000 400 250 590 30 6000*2180*3800
500T/5000 5000 5000 4000 400 250 590 45 5050*3500*3700
500T/6000 5000 6000 5000 400 320 590 45 6050*3500*3700
600T/4000 6000 4000 3000 400 320 590 55 4050*4500*3700
600T/6000 6000 6000 5000 400 320 590 55 6050*4500*3700
800T/6000 6000 6000 5000 400 320 590 55 6300*4500*600

Standard Components

Request A Quote
  • Hydraulic Valve: Taiwan UOSHEN
  • Oil Pump: USA SUNNY
  • Oil Cylinder: Made in China
  • Main Motor: Simens
  • Ball Screw Rod: China
  • Linear Guide: China
  • Front Support: China
  • Finger Amount: 2/3/4/6
  • Pedal Switch: Simple Emergency Stop Type
  • Front Protection: Side Fence
  • Rear Protection: Warning Tape
  • Tooling: Standard Type
  • Clamps: Blade Connection Plate
  • Electrics:DELIXI
  • Controller: Estun E21
  • Backgauge: Normal Type

Overview of 2-3 Axis NC Press Brake Configuration

General Features

  • The torsion shaft is used to connect the left and right swing rods to form a torsion shaft forced synchronization mechanism to keep the up and down movement of the cylinders on both sides synchronized
  • The host adopts WC67Y model, equipped with a simple numerical control system, economical and practical
  • With the digital display of the position of the slider on the backgauge, the x/y week soft limit, and the one-way positioning gap prompt function
  • Both the back gauge and the upper slider are equipped with encoders, and the digital display system makes the position value of the back gauge and the upper slider accurately displayed, thereby further improving the working accuracy of the machine
WC67K

Want to get the price of our NC press brake 2-3 axis?

Get in touch with our team of experts to receive professional suggestions.

Request A Quote

Products Details

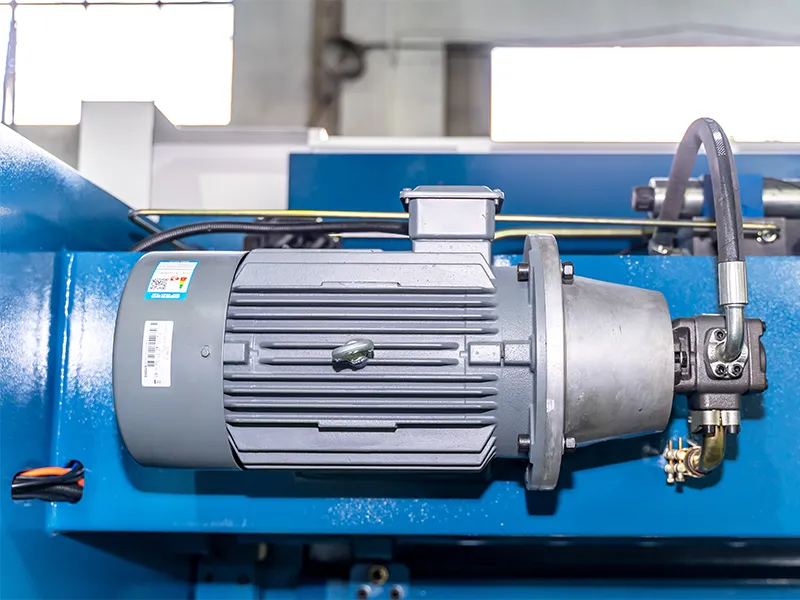

Main Motor

Main Motor

JCT famous brand motor improves the life span of the machine. Keep the machine working in low noise environment.

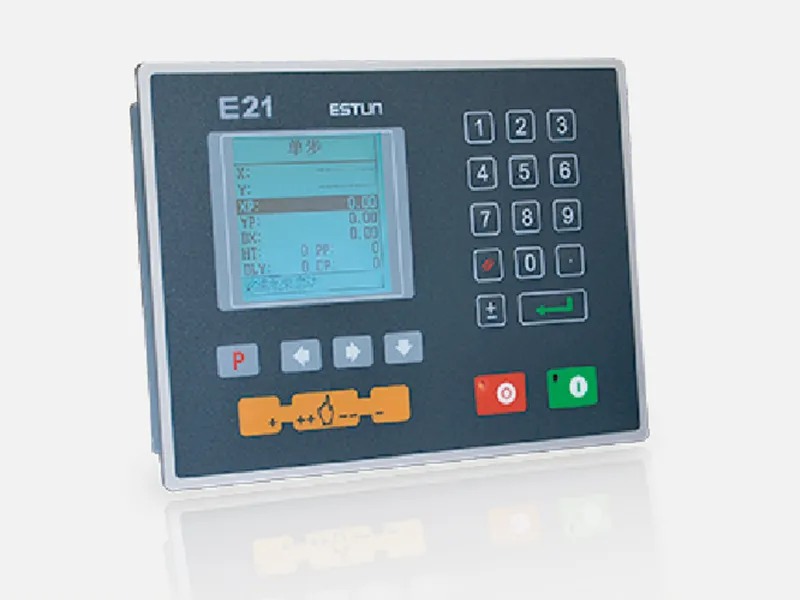

E21

NC controller

Backgauge and ram stroke control,Intelligent and unilateral positioning,Work-piece counting function,Holding/decompression time setting,40 programs stored, 25 steps per program,One key back-up/restore of parameters.

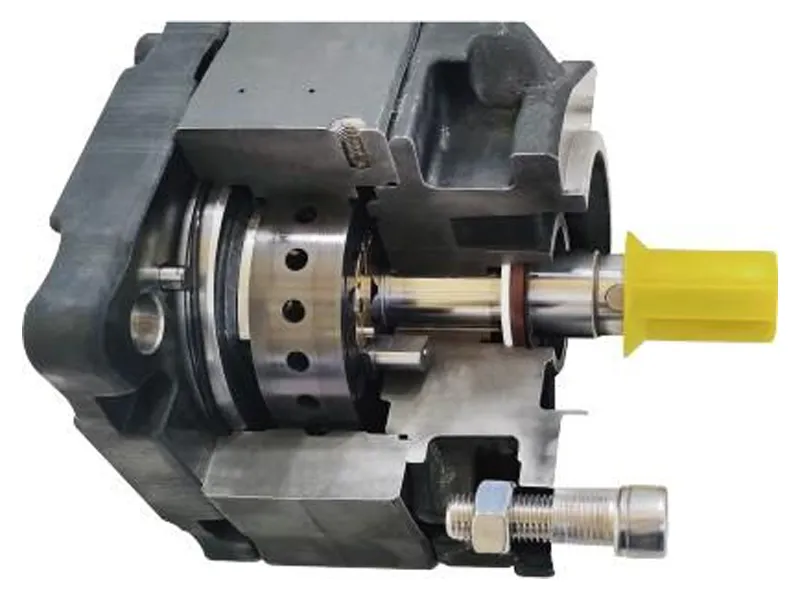

USA Sunny Pump

USA Sunny Pump

American world famous brand for hydraulic pump performs well. Provide great power for the whole hydraulic system
Foot Pedal Switch

Hydraulic System

China top 1 hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.

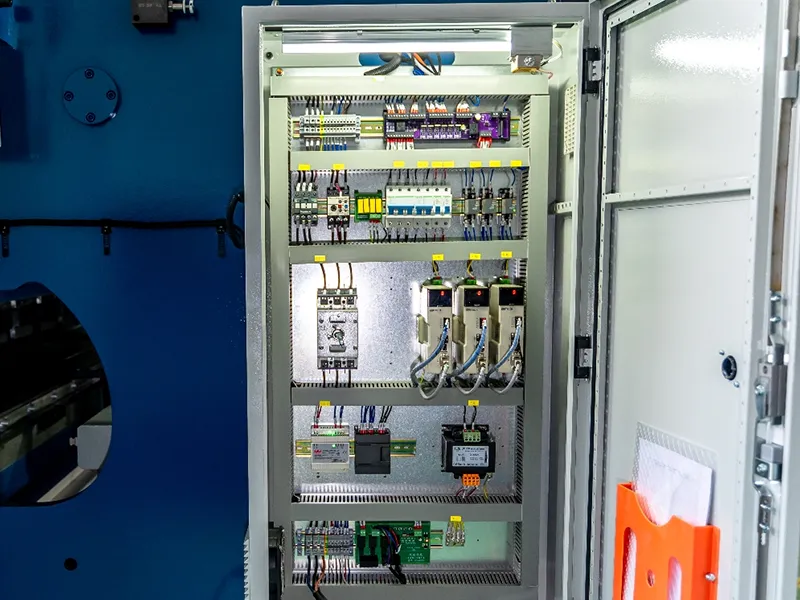

Electric System

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word The motors for backgauge stroke are controlled by inverter, which can achieve high positioning accuracy of the backgauge

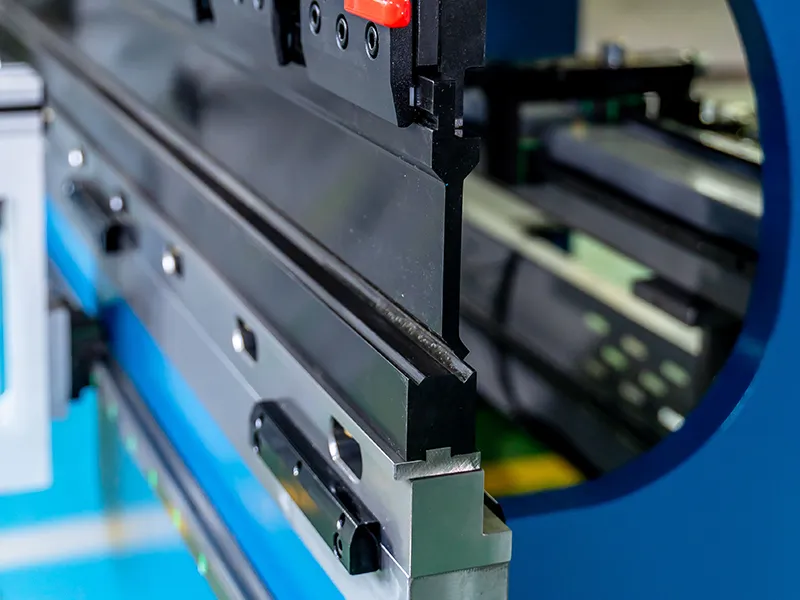

Ball Screw&Linear Guide

Ball Screw&Linear Guide

Polished rod and high precision ball screw and linear guide can improve the speed of back gauge.

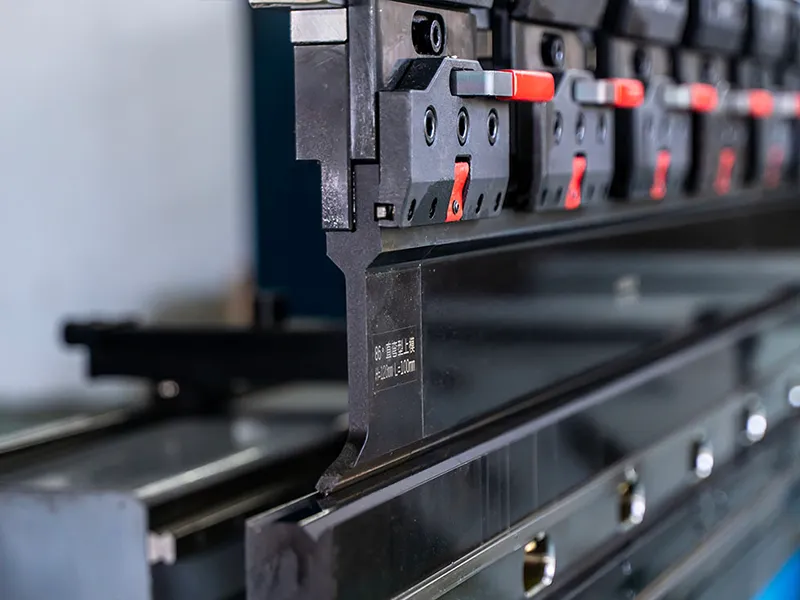

2-3 axis Fast Clamp

Fast Clamp

Upper die is a kind of mechanical hook-type "clamping,higher safety when exchanging dies.

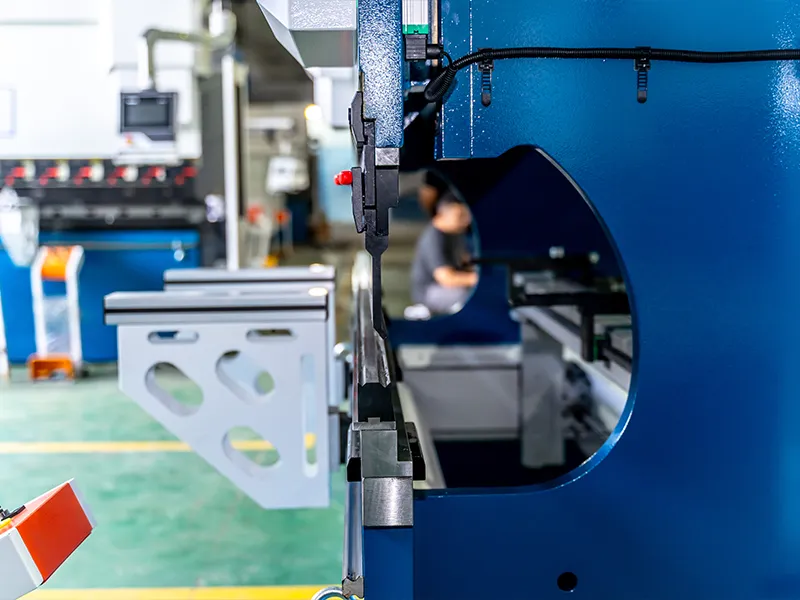

Press Brake Tooling (Punch & Die)

Punch/Die

Press Brake tooling are made from 42 CrMo materials with hardness up to 42 degrees to ensuring die service life. We specialized service to customized the forming mold according to customers’ requirement.
