All-in-One Plate & Tube Laser Cutting Machine

Laser power: 1000W-3000W
Working area: 3000*1500mm,4000*1500mm, 4000*2000, 6000*2000mm,6000*2500mm

The All-in-One Plate & Tube Laser Cutting Machine innovatively integrates the capabilities for processing both flat sheets and metal tubes (such as square and round pipes) into a single platform. Governed by a sophisticated CNC system, it seamlessly switches between processing modes, enabling complex cutting on diverse workpieces without the need for machine changeover. This integrated design not only significantly saves on equipment investment and factory floor space but also streamlines production workflows. It presents an ideal solution for flexible manufacturing, particularly suited for job shops with diversified processing needs for both plates and tubes.

General Features

This model adopts rackand pinion transmission structure, standard manual clamping chuck, push-type pipe cutting method, can be used for general sheet metal cutting and common square tube, round tube, rectangular tube cutting.
It has many technical advantages such as high configuration, high cutting efficiency, low operating cost and stable performance.
Powerful cutting function can meet customers’ flat and pipe cutting requirements at the same time.
It adopts manual chuck and push-type cutting method, which has high centering precision and processing precision.

Standard Equipment

Switzerland Raytools Cutting Head
China Top 1 Brand Raycus Laser
Taiwan YYC Rack and HIWIN Linear Rail
Taiwan FASTON Reducer
Janpan Yaskawa AC Servo Motor and Drive

Shanghai Cypcut Cutting System
Japan SMC+AirTAG Pneumatic Component
China Hanli Chiller
Machine Platform and Accessories

Optional

Germany Precitec Cutting Head
Shenzhen WSX Cutting Head
China famous brand MAX Laser Source
Germany IPG Laser Source
USA N-light Laser Source
Voltage Stabilizer
Air Compressor
Exhaust System

Want to get the price of our all-in-one plate & tube laser cutting machine?

Get in touch with our team of experts to receive professional suggestions.

Products Details

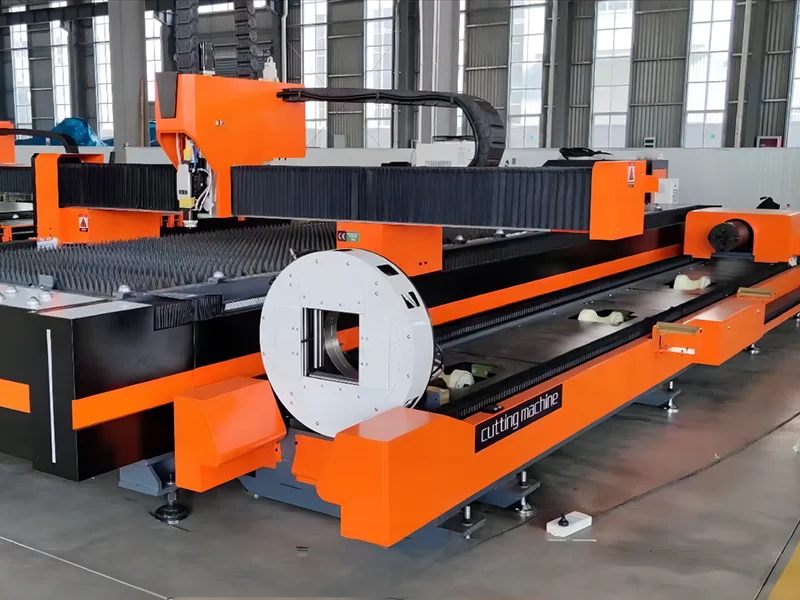

Self-centering Jig System

Electric clamp design on both ends of metal tubes. Modulate the center automatically and clamp intensely. Diagonal adjustable range is 20-200mm.

Switzerland RAYTOOLS Laser Cutting Head

High Efficiency Cooling; Auto-focusing system;High-Speed Piercing &Cutting;High Power Rating;Portable and Durable. Optional: (LASERMECH,PRECITEC).

100,000 Hours Of Lifetime-raycus Laser Source

Free maintenance High electro-optical conversion efficiency(up to 25-30%) Excellent beam quality, high energy density, and reliability, a wide modulation frequency Low energy consumption, only 20%-30% of the traditional co2 machine. Optional: IPG(Germany), Nlight(USA),Max(China)

High Rigidity Enhanced Lathe Bed

Strict manufacturing process, high-temperature annealing treatment to eliminate weld seams and bed stress.72hrs vibration aging treatment, high strength, rigidity, tensile strength, non-deformation within 20years.High purity steel plate with thickness of 10mm heavy chassis.

User-friendly Human-mach Ineinteraction

CYPCUT PROFESSIONAL LASER TUBE&PLATE CUTTING SYSTEM: Simple, economical, practical and convenient. Highly integrated and highly intelligent with file.reading, design, output and processing control all in one.

Intelligent Dual Temperaturedual Control--hanli industrialwater Chiller

Automatically adjust the temperature according to different working environment, no need to change settings parameters Multiple alarm protection CE certification: ROHS certification REACH certification.

Janpan YASKAWA Servo Motor&Driver

Increasing the speed to 6000 RPM reduces the temperature rise, increasing the efficiency and shortening the peak to 350%.Full set of servo drive system, to ensure higher accuracy, faster speed, more stable operation.
